VSOL HG3221D

• V-SOL Dual-band Gigabit WiFi 5 Router
• MTK WiFi 5 Chipset | 1200Mbps | IPV4/IPV6 | USB 3.0
• 4GE + 1POTS + 1 USB 3.0 + WiFi 5 HGU
• Dual-band Concurrency WiFi 5
• 4×5dBi Gain External Antennas
Add to wishlist
Category: Tags: , ,
Description
○ Hardware Parameter
Dimension 205mm×140mm×37mm(L×W×H)
Net weight 0.32Kg
Operating condition Operating temp:0 ~ +55°C

Operating humidity:5 ~ 90%  (non-condensed)
Storing condition Storing temp: -30 ~ +60°C

Storing humidity: 5 ~ 90%  (non-condensed)
Power adapter DC 12V,1.5A, external AC-DC power adaptor
Power supply ≤10W
Interface HG3221D-4G1S2NAC:4GE+1POTS+USB3.0+WiFi5
HG3221D-4G2S2NAC:4GE+2POTS+USB3.0+WiFi5

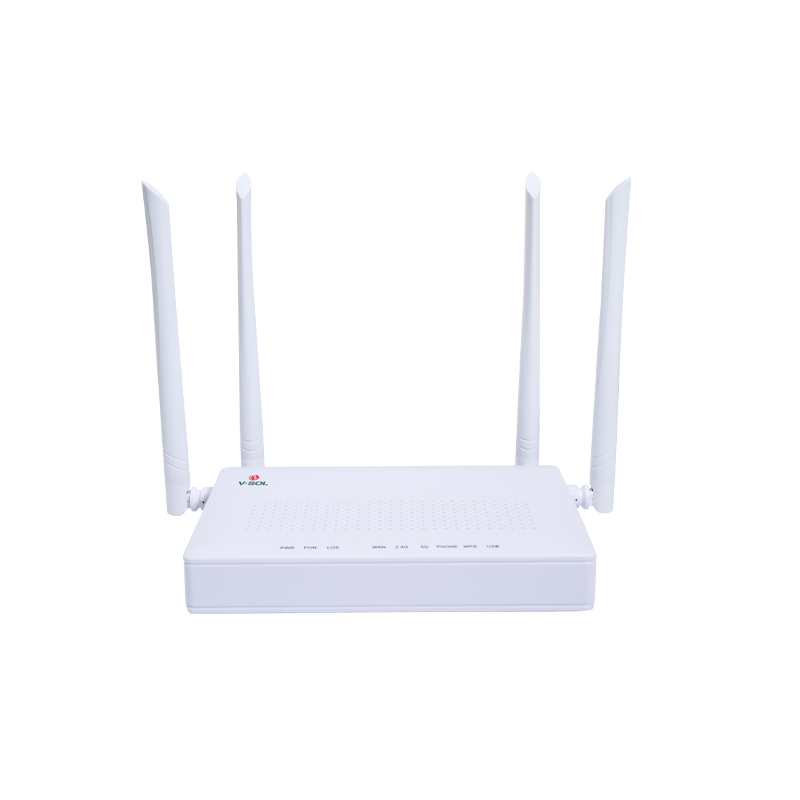

Indicators PWR,PON ,LOS,WAN,WiFi,FXS,ETH1~4,WPS,USB
○ Interface parameter
PON Interface
  • 1XPON port(EPON PX20+ and GPON Class B+)
  • SC single mode, SC/UPC connector
  • TX optical power: 0～+4dBm
  • RX sensitivity: -27dBm
  • Overload optical power: -3dBm(EPON) or  -8dBm(GPON)
  • Transmission distance: 20KM
  • Wavelength: TX 1310nm, RX1490nm
User interface

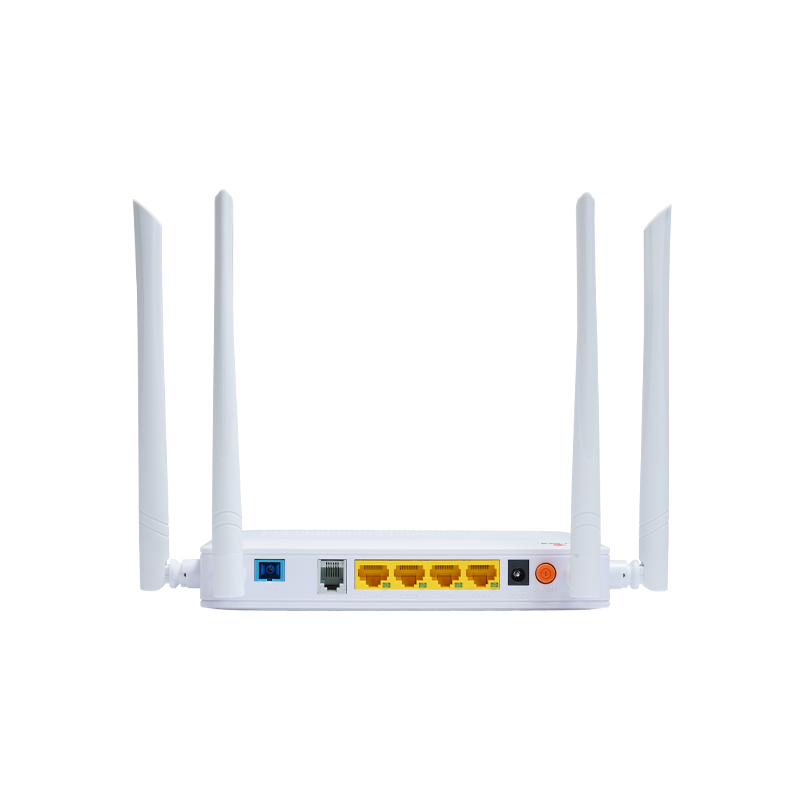

  • 4×GE, Auto-negotiation,RJ45 ports
  • 1×POTS(2×RJ11 option) RJ11 Connector
Antenna 4T4R, 5dBi  external antennas

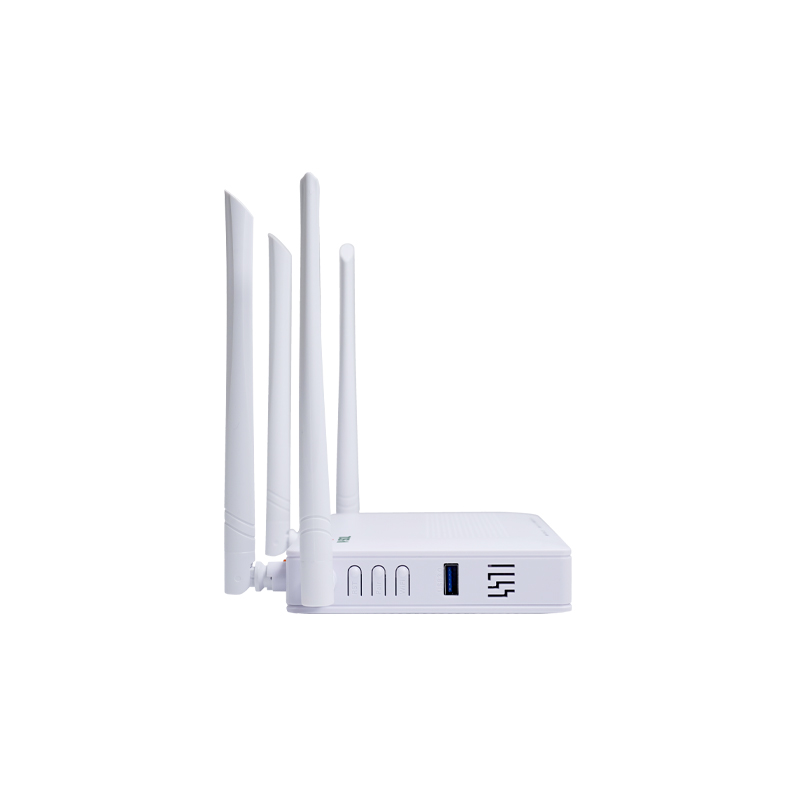

USB 1×USB 3.0 for Shared Storage/Printer



○ Function Data
Management
  • WEB/TELNET/OAM/OMCI/TR069
  • Support private OAM/OMCI protocol and Unified network management of VSOL OLT
Internet connection Support Routing Mode
Multicast IGMP v1/v2/v3, IGMP snooping
VoIP
  • SIP and IMS SIP
  • Codec∶G.711/G.723/G.726/G.729 codec
  • Echo cancellation,VAD/CNG,DTMF
  • T.30/T.38 FAX
  • Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference
  • Line testing according to GR-909
WIFI
  • Support Frequency:2.4 GHz,5GHz

IEEE 802.11a/n/ac Wi-Fi@ 5GHz(2×2)

IEEE 802.11b/g/n Wi-Fi@2.4GHz(2×2)

  • Multiple SSIDs for each band
  • WEP/WPA-PSK(TKIP)/WPA2-PSK(AES) Security
L2 802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN
L3 IPv4/IPv6, DHCP Client/Server,PPPoE, NAT,DMZ, DDNS
Firewall Anti-DDOS, Filtering Based on ACL/MAC/URL



For Firmware and Catalog: click here
