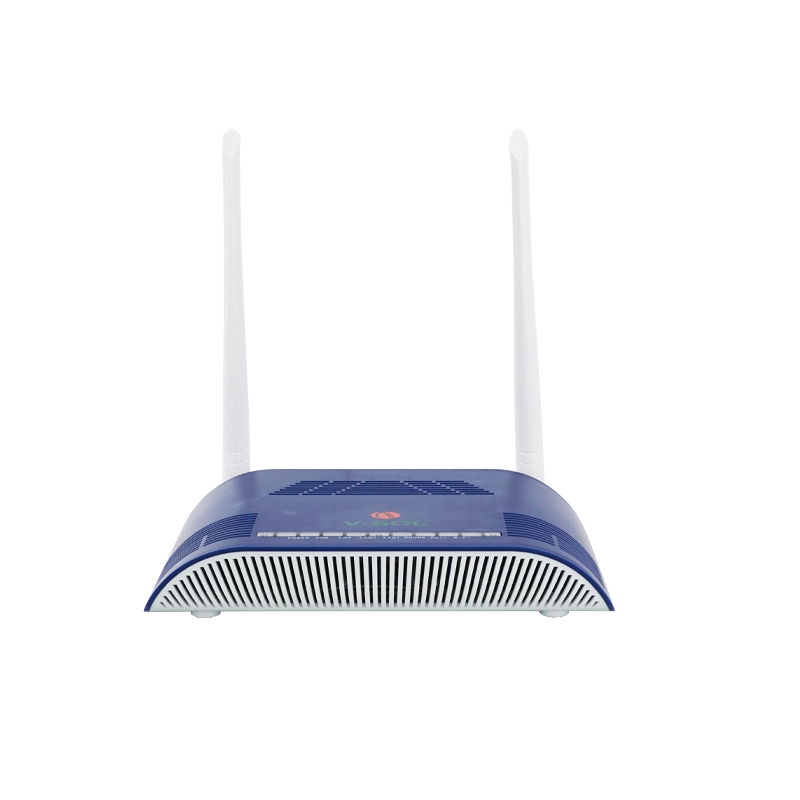

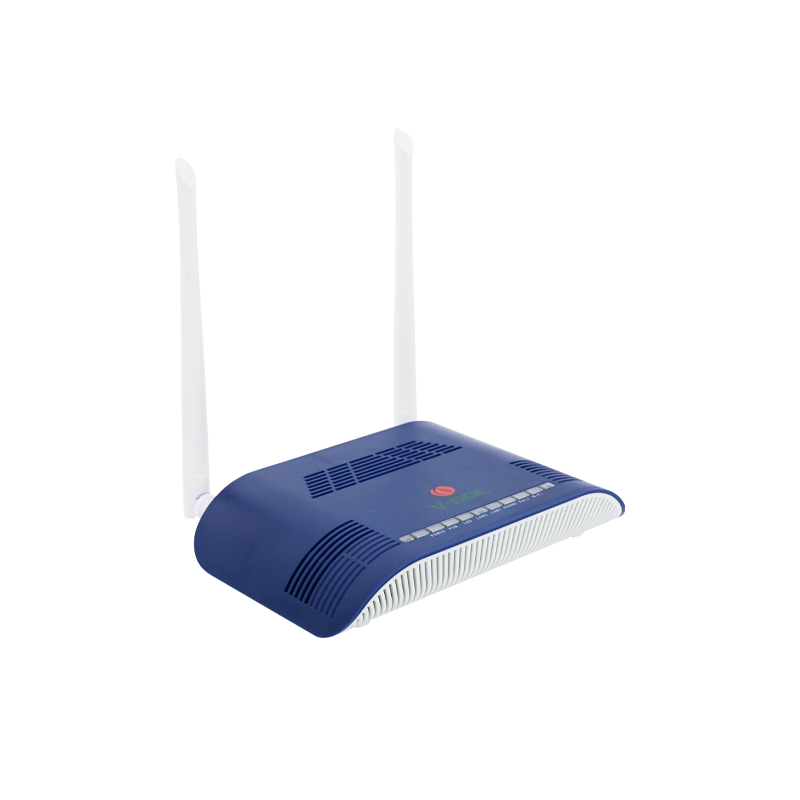

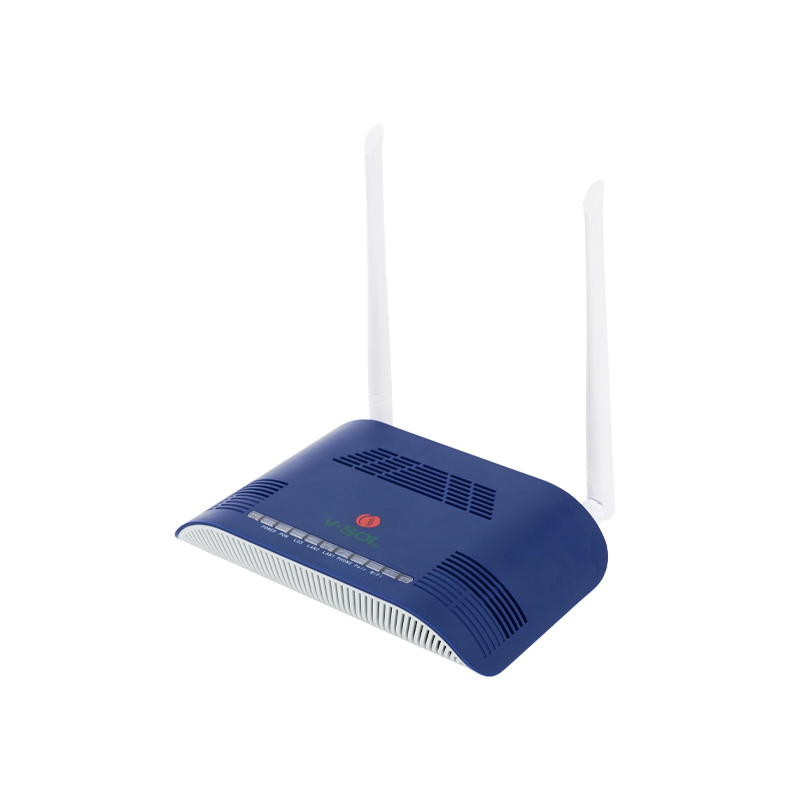

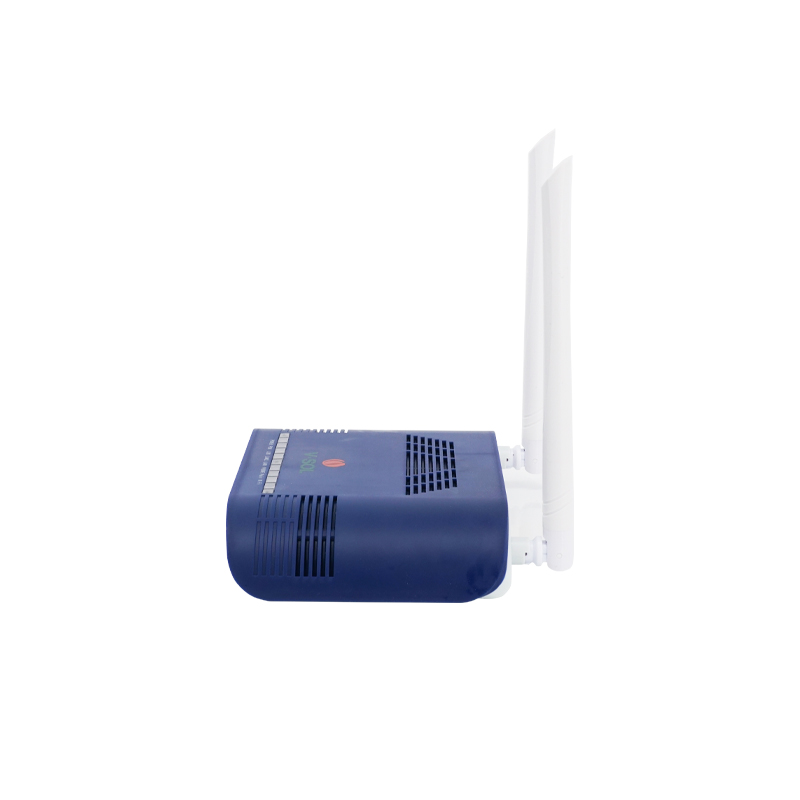

VSOL HG323RGW

• 300M Wireless Home Gateway
• XPON Dual Mode | WiFi 4 | SIP Protocol
• Integrated with Rich Triple-play Function, Applicable to family, office, hotel, enterprise, campus and other application scenarios
• External 2×5dBi Antena
• IEEE802.11b/g/n 2.4Ghz, Up to 300Mbps, Wide Coverage.
• VoIP Function
Add to wishlist
Category: Tags: , ,
Description
○ Hardware Parameter
Dimension 185mm×120mm×34m(L×W×H)
Net weight 0.24Kg
Operating condition
  • Operating temp: 0 ~ +50°C
  • Operating humidity: 10 ~ 90%  (non-condensed)
Storing condition
  • Storing temp: -30 ~ +60°C
  • Storing humidity: 10 ~ 90%  (non-condensed)
Power adapter DC 12V/1A, external AC-DC power adaptor
Power supply ≤6W

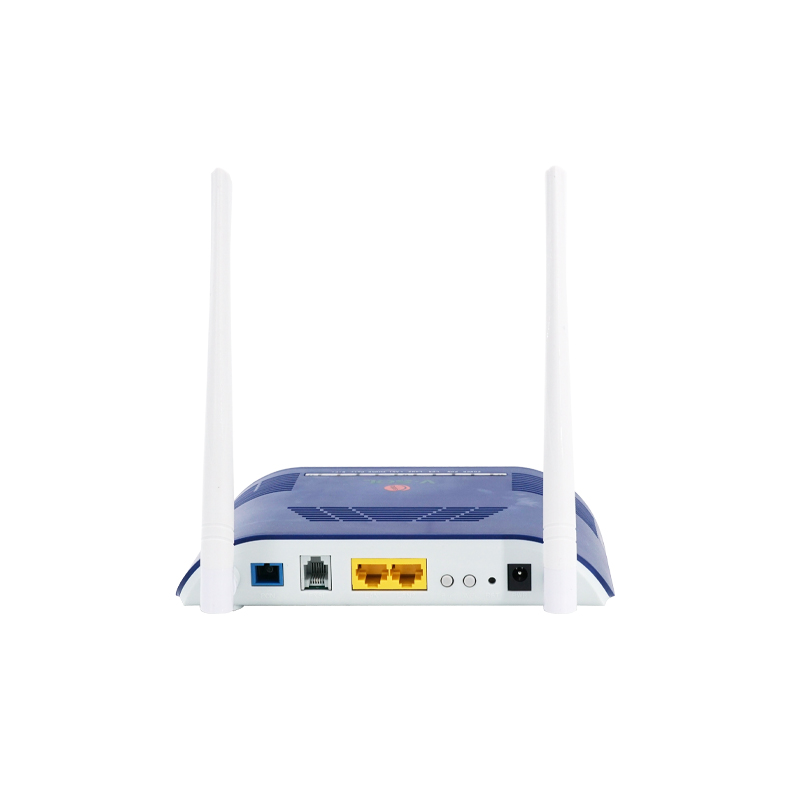

Interfaces 1GE+1FE+1POTS+WiFi 4
Indicators PWR, PON,LOS,LAN1~LAN2,PHONE,Pair,WiFi
○ Interface parameter
PON interface
  • 1XPON port(EPON PX20+ and GPON Class B+)
  • SC single mode, SC/UPC connector
  • TX optical power: 0～+4dBm
  • RX sensitivity: -27dBm
  • Overload optical power: -3dBm(EPON) or -8dBm(GPON)
  • Transmission distance: 20KM
  • Wavelength: TX 1310nm, RX1490nm
WIFI interface
  • IEEE802.11b/g/n (TX power: 17dBm/16dBm/ 15dBm), Up to 300Mbps
  • 2T2R, 5dBi external antenna
  • Support 13 Channels
User interface
  • 1*GE+1FE,Auto-negotiation, RJ45 connectors
  • 1*POTS, RJ11 connectors



○ Function Data
PON mode Dual Mode Can access EPON/GPON OLTs (HUAWEI,ZTE, FiberHome, etc)
Uplink mode Bridging and Routing Mode
Layer2 802.1D&802.1ad bridge,802.1p Cos, 802.1Q VLAN
Layer3 IPv4/IPv6 , DHCP Client/Server , PPPoE，NAT , DMZ ,DDNS
Multicast IGMPv1/v2/v3 , IGMP snooping
Security Flow & Storm control, Loop Detection
WiFi
  • Authentication: WEP/WAP-PSK(TKIP)/ WAP2-PSK(AES)
  • Support: multiple SSID
VoIP
  • SIP and IMS SIP
  • G.711a/G.711u/G.722/G.729 Codec
  • Echo cancellation,VAD/CNG,DTMF Relay
  • T.30/T.38 FAX
  • Caller Identification/Call Waiting/Call Forwarding /Call Transfer/Call Hold/3-way Conference
  • Line testing according to GR-909
Firewall Filtering Based on ACL/MAC/URL
O&M
  • WEB/TELNET/OAM/OMCI/TR069
  • Support private OAM/OMCI protocol and Unified network management of VSOL OLT



For Firmware and Catalog: click here
