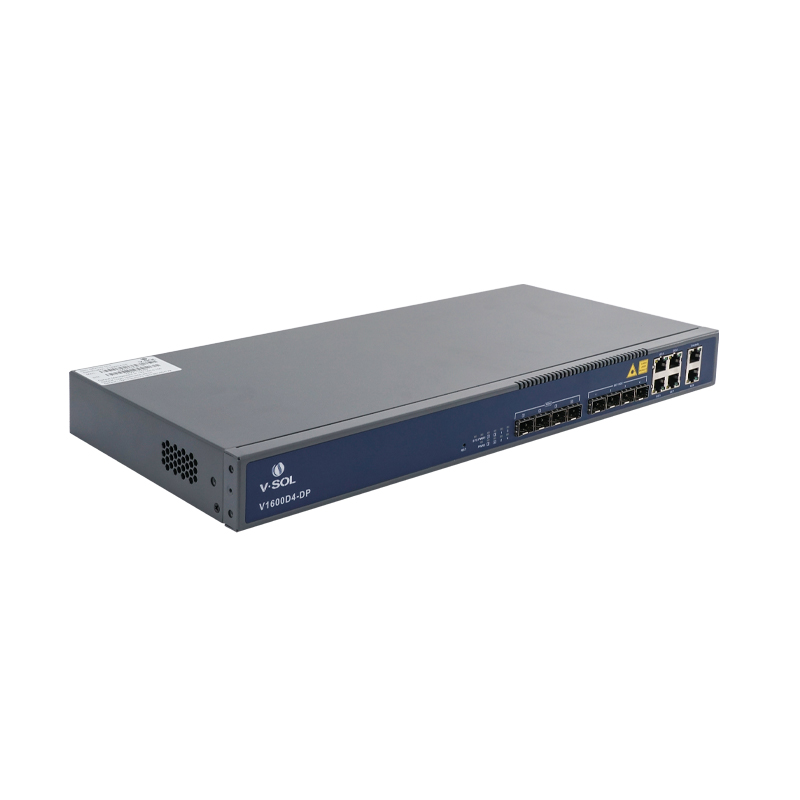

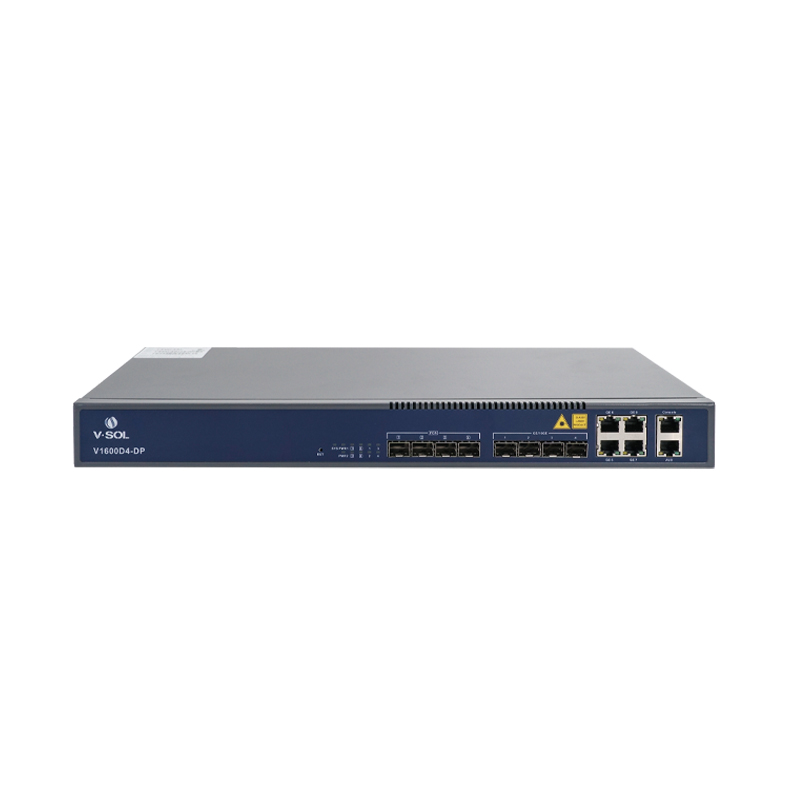

| Item | V1600D4-DP/BT | V1600D8 | V1600D16 | |||
| Dimension (L*W*H) | 442mm*200mm*43mm | 442mm*320mm*43mm | ||||
| GE/10GE
Uplink Port |
QTY | 8 | 16 | 12 | ||
| RJ45(GE) | 4 | 8 | 4 | |||
| SFP(GE) | / | 4 | 4 | |||
| SFP+(10GE) | 4 | 4 | 4 | |||
| EPON Port | QTY | 4 | 8 | 16 | ||
| Physical Interface | SFP Slots, PX20+++ Connector Type, Max splitting ratio ≤ 1:64 | |||||
| Management Ports | 1*FE out-band port, 1*CONSOLE port | |||||
| PON Port Specification
(PX20++ module) |
Transmission Distance | 20KM | ||||
| EPON port speed | Upstream 1.25G, Downstream 1.25G | |||||
| Wavelength | TX 1490nm, RX 1310nm | |||||
| Connector | SC / UPC | |||||
| Fiber Type | 9/125μm SMF | |||||
| TX Power | +4.5 ~ +9dBm | |||||
| Rx Sensitivity | ≤ -32dBm | |||||
| Saturation Optical Power | -8dBm | |||||
| Weight
(Single AC Power) |
Net Weight | 3.2kg | 4.5kg | 6.5kg | ||
| Gross Weight | 4.3kg | 6.5kg | 7.8kg | |||

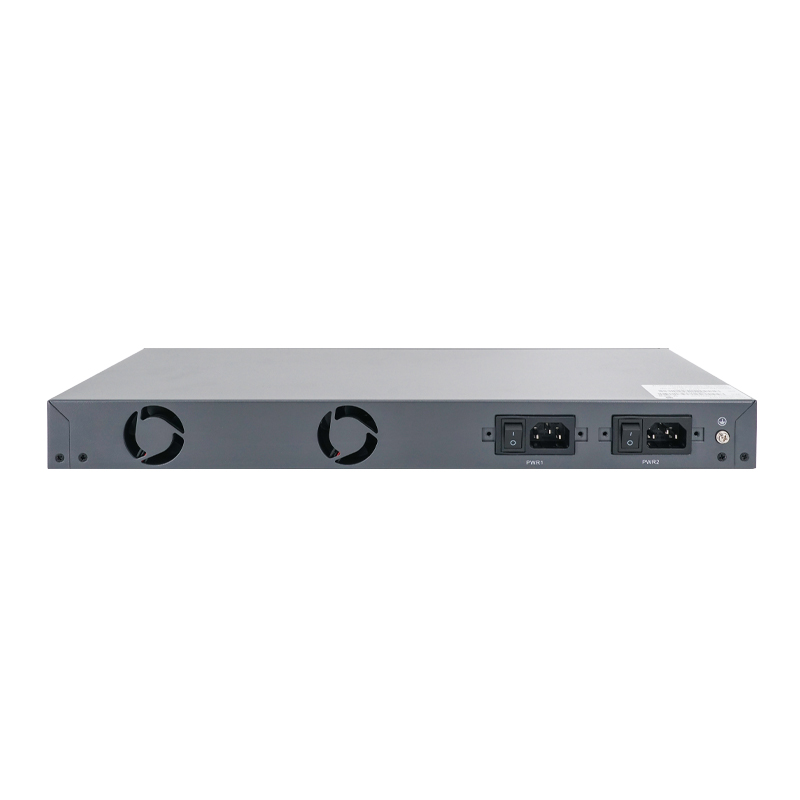

| Power Supply | AC:100~240V, 47/63Hz, DC:-48V, BBU(option for D4-BT), Double Power Module Hot Backup | |||||
| Power Consumption | 35W | 45W | 85W | |||
| Operating
Environment |
Working Temperature | 0°C ~ +50°C | ||||
| Storage Temperature | -40 ~ +85°C | |||||
| Relative Humidity | 5 ~ 90% (non-conditioning) | |||||
| Management Mode | EMS, TR069 VACS, WEB, SNMP, Telnet , CLI | |||||
For Firmware and Catalog: click here
