Specifications
| Details | |
|---|---|

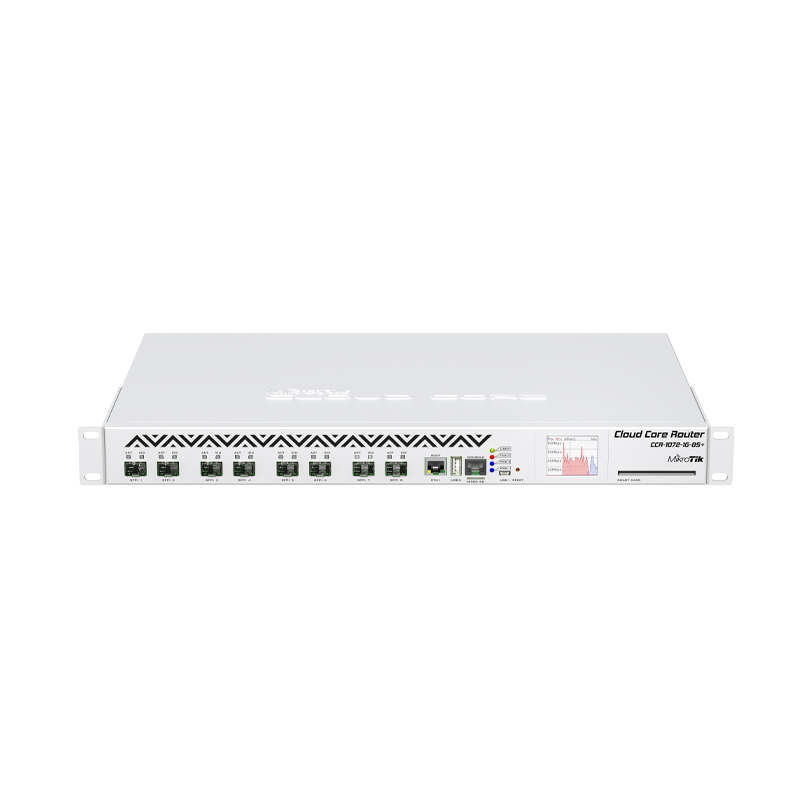

| Product code | CCR1072-1G-8S+ |
| Architecture | TILE |
| CPU | TLR4-07280 |
| CPU core count | 72 |
| CPU nominal frequency | 1 GHz |
| Dimensions | 443 x 315 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 16 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 125 W |
| Cooling type | 4 fans |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 8 |
Peripherals
| Details | |
|---|---|
| Memory card type | microSD, 2x M.2 |
| Memory Cards | 3 |
| Serial console port | RJ45 |
| Number of USB ports | 2 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB; USB type A |
| Max USB current (A) | 1 |
| Smart card slot | Yes |
| Number of M.2 slots | 2 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
For Firmware and Catalog: click here
