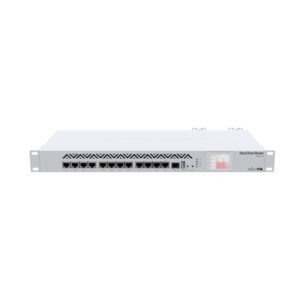

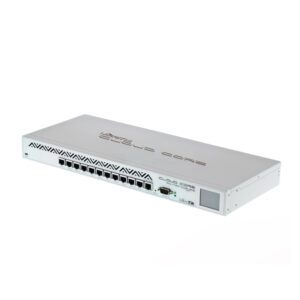

CCR1016-12G
Product code : CCR1016-12G
CPU : Tilera Tile-Gx16 CPU, 16 cores, 1.2 GHz per core
Size of RAM : 2 GB
Storage : 512 MB NAND, 512 KB flash
10/100/1000 Ethernet ports : 12
Supported input voltage : AC power supply 100 - 240 V
Redundant supply : Yes
USB port : USB type A
Serial port : RJ45
Dimensions : 443 x 193 x 44 mm
Operating temperature : -20°C .. +60°C
Operating system : RouterOS, License level 6
Max power consumption : 42 W

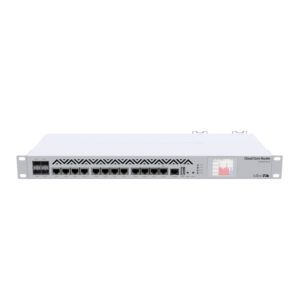

CCR1036-12G-4S-EM
Product code : CCR1036-12G-4S-EM
CPU : Tilera Tile-Gx36 CPU, 36 cores, 1.2 GHz per core
Size of RAM : 8 GB
Storage : 1 GB NAND, 512 KB flash
10/100/1000 Ethernet ports : 12
Supported input voltage : AC power supply 100 - 240 V
1G SFP ports : 4
Redundant supply : Yes
USB port : USB type A
Serial port : RJ45
Dimensions : 443 x 193 x 44 mm
Operating temperature : -20°C .. +60°C
Operating system : RouterOS, License level 6
Max power consumption : 60 W

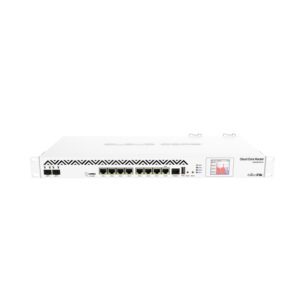

CCR1036-8G-2S+EM
Product code : CCR1036-8G-2S+EM
CPU : 36 cores TLR4-03680 1.2 GHz
RAM : 8 GB
Storage NAND : 1 GB
Dimensions : 443 x 193 x 44 mm
Operating temperature : -20°C .. +60°C tested
Operating system : RouterOS
License level : 6
10/100/1000 Ethernet ports : 8
1G/10G SFP+ ports : 2
M.2 slots : 1 PCIe x4
Memory card slots : 1 microSD
USB ports : 1 USB type A
Serial ports : 1 RJ45

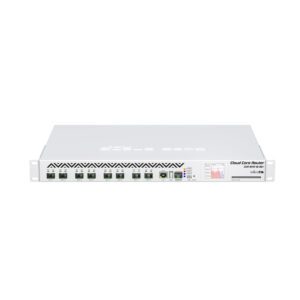

CCR1072-1G-8S+
Product code : CCR1072-1G-8S+
CPU nominal frequency : 1 GHz
CPU core count : 72
Size of RAM : 16 GB
Storage : 128 MB Onboard NAND, also see expansion
10/100/1000 Ethernet ports : 1
Power supply : 2x IEC C14 standard connectors 110/220V (Two redundant PSU)
Supported input voltage : 12 V
CPU temperature monitor : Yes
PCB temperature monitor : Yes
Voltage Monitor : Yes
Current monitor : Yes
Dimensions : 443 x 315 x 44 mm, weight: 3.8 kg, weight with packaging: 5.125 kg
License level : 6
Operating System : RouterOS
CPU : Tilera Tile-Gx72 CPU
Max Power consumption : 125 W
Display : Color LCD, touchscreen
SFP : 8x 10G Ethernet SFP+ cages (Mini-GBIC; SFP module not included), DDMI support
Expansion : 1x microUSB 2.0, 1x regular USB 2.0, full size Smart Card slot, microSD slot, 2x M.2 slots with x4 PCIE 2.0, Key-M, module size support: 2242,2260,2280
Serial port : RJ45

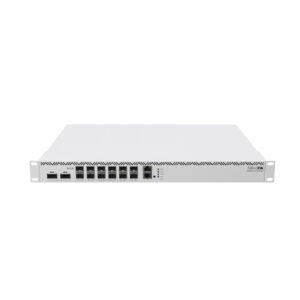

CCR2004-1G-12S+2XS
Product code : CCR2004-1G-12S+2XS
CPU : AL32400 1700 MHz
CPU core count : 4
Size of RAM : RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC
RAM type : DDR4
Storage : 128 MB, NAND
Number of 1G Ethernet ports : 1
Number of 10G SFP+ ports : 12
Number of 25G SFP28 ports : 2
Operating system : RouterOS
Router license level : 6
Supported input voltage : AC power supply 100 - 240 V
Number of AC inputs : 2
Dimensions : 443 x 224 x 44 mm
Operating temperature : -20°C to +60°C tested
Max power consumption : 49 W

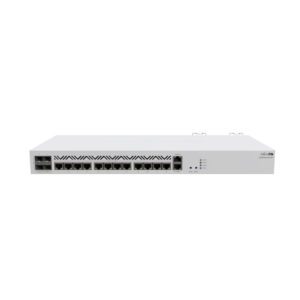

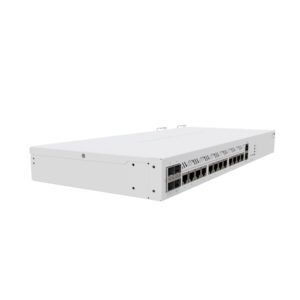

CCR2116-12G-4S+
Product code : CCR2116-12G-4S+
CPU : AL73400 2 GHz
CPU architecture : ARM 64bit
CPU core count : 16
Size of RAM : 16 GB
RAM type : DDR4
Storage : 128 MB, NAND
Number of 1G Ethernet ports : 13
Number of 10G SFP+ ports : 4
Number of M.2 slots : 1
Operating system : RouterOS (License level 6)
Switch chip model : 98DX3255
Dimensions : 443 x 199 x 44 mm
Operating temperature : -20°C to +60°C
