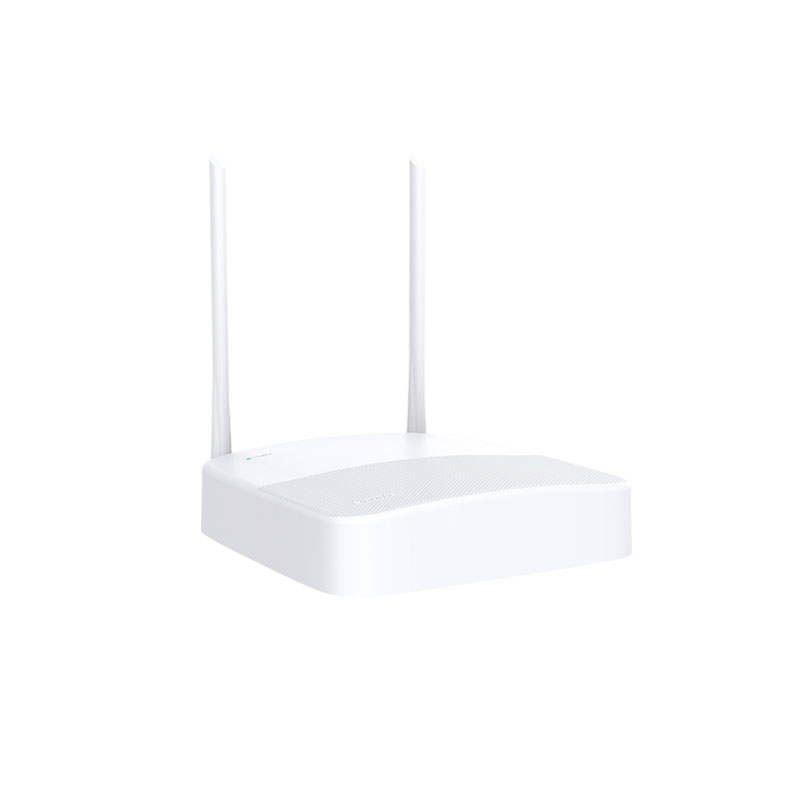

Video and Audio Input
IP Video Input : 4-ch
IP Video Resolution : Up to 3MP
Input Bandwidth : 60 Mbps
Output Bandwidth : 60 Mbps
Video and Audio Output
HDMI Output : 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output : 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
Video and Audio Decoding
Video Decoding Format : H.265, H.264
Audio Decoding Format : G.711A
Recording Resolution : 3MP, 1080p, UXGA, 720p, VGA, nHD, 4CIF, CIF
Decoding Capability : 4-ch@1080p (30 fps)
Stream Type : Video, Video and Audio
Recording Management
Record Mode : Normal, Alarm
Playback Mode : Instant, Channel, File, Tag
Sync Playback : Up to 4-ch
Backup Mode : USB device
Networking Management
Ethernet Port : 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
Network Protocol : TCP/IP, IPv4, RTSP, UDP, NTP, DHCP
Mobile Client : Supports iOS, Android
Wireless Specification
Wireless Standard : IEEE 802.11b/g/n
Frequency : 2.4 GHz
Antenna : Dual external antennas
Transmission Rate : Up to 144 Mbps
HDD Storage
HDD Interface : 1 SATA 3.0 interface
Capacity : Up to 10 TB capacity for each HDD
External Interface
USB Port : 1 x USB 2.0
Generals
Power : 12 V DC, 2 A
Dimension : 200 mm × 200 mm × 48 mm (7.9” × 7.9” × 1.9”)
Weight (Without HDD) : 510 g (1.13lb)
Certification : CCC, SRRC, CE, FCC, RoHs
Installation Method : Desk mounting, wall mounting
Temperature
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature: -30°C ~ 70°C (-22°F ~ 158°F)
Humidity
Operating Humidity: 10% ~ 90% RH (non-condensing)
Storage Humidity: 5% ~ 95% RH (non-condensing)

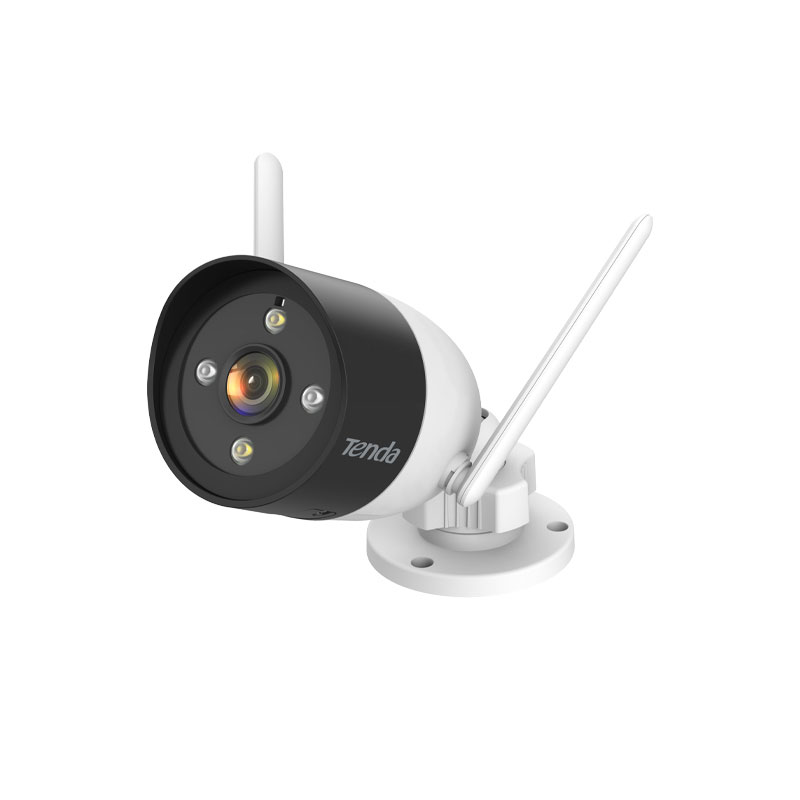

Wi-Fi Camera
Camera
Image Sensor : 1/2.7” CMOS sensor
Max. Resolution : 2304 x 1296
Day and Night : ICR type
Digital Noise Reduction : 3D DNR
Digital Wide Dynamic Range : Support
Backlight Compensation : Support
Supplementary Light : 2 IR lights, 2 spotlights
Infrared Supplementary Light Distance : 30 meters (depending on environment)
Night Vision Mode : Smart Mode, Full Color Mode, Black and White Mode
Lens Specifications
Lens Type : 4 mm@F1.6
FOV : Horizontal FOV: 86.1°, Vertical FOV: 46°, Diagonal FOV: 104°
Video Specifications
Video Encoding Format : H.265
Main Stream : 15fps (2304 ×1296, 1920 × 1080, 1280 × 720, 640 × 360)
Sub Stream : 15fps (640 × 360, 352 × 288)
Audio Specifications
Audio Encoding Format : G.711A
Audio Sampling Rate : 8 kHz
Network Management
Ethernet Port : 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
Wireless Specification
Wireless Standard : IEEE 802.11b/g/n
Frequency : 2.4 GHz
Transmission Rate : Up to 144 Mbps
Antenna : Dual external antennas
Smart Alarm
Motion Detection : Support
S-motion Detection : Support
Sound and Light Alert : Support
External Interface
Audio Input : Built-in MIC
Audio Output : Built-in speaker
Button : 1 x Reset button
LED Indicator : 1 x Dual color (red and blue) LED indicator
General
Power : 12 V DC, 1 A
Dimension : 175 mm x 72 mm x 72 mm (6.9” × 2.9” × 2.9”)
Weight : 226 g (0.5lb)
Protection Level : IP66
Installation Method : Wall mounting, ceiling mounting
Certification : CE, FCC, RoHs
Temperature
Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Humidity
Operating Humidity: 10% ~ 95% RH (non-condensing)
Storage Humidity: 3% ~ 95% RH (non-condensing)

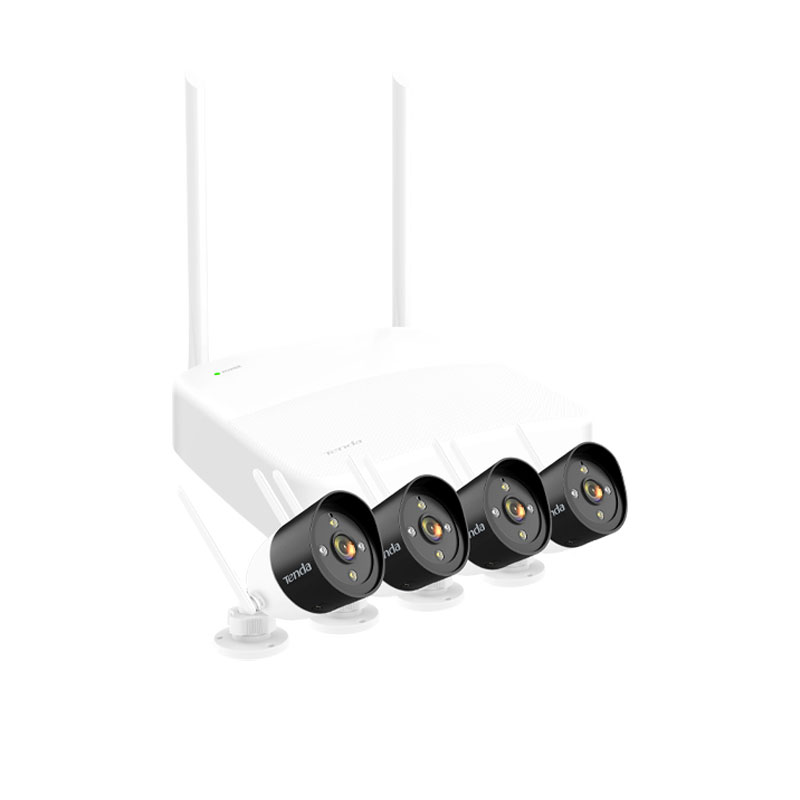

Kit
Dimension : 305 mm x 305 mm x 280 mm (12” × 12” × 11”)
Weight : 3.1 kg (6.84lb)
Package Contents
Wi-Fi Network Video Recorder x 1
Power adapter (12 V 2 A) x 1
Screw kit (Wi-Fi network video recorder) x 1
Mouse x 1
Quick installation guide x 1
Wi-Fi Cameras x 4
Power adapters (12 V 1 A) x 4
Screw kits (Wi-Fi camera) x 1
Installation templates x 4
Waterproof kits x 4
