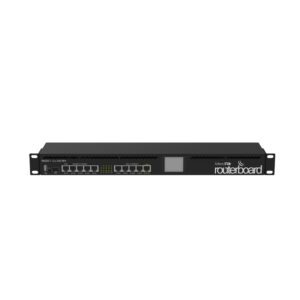

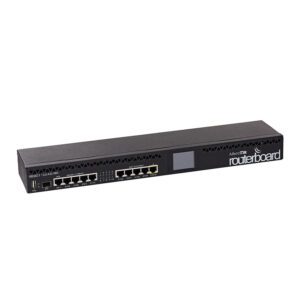

RB2011UiAS-RM
-CPU : Atheros AR9344 600MHz
-Memory : 128MB DDR SDRAM onboard memory
-Ethernet Five 10/100 Mbit Fast Ethernet ports with Auto-MDI/X
Five 10/100/1000 Mbit Gigabit Ethernet ports with Auto-MDI/X
-Extras : Reset button, Reset jumper
-LEDs : Power, User, Ethernet activity
-Power input : Jack 8-28V DC; PoE in: 8-28V DC on Ether1 (Non 802.3af).
-Power output : 500mA on Port 10
Dimensions Desktop:230x90x25mm
Rackmount:443x92x44m
Power consumption : 15W max
Operating System : MikroTik RouterOS, L5 license
Package includes : RB2011, power supply, screw set, rack ears

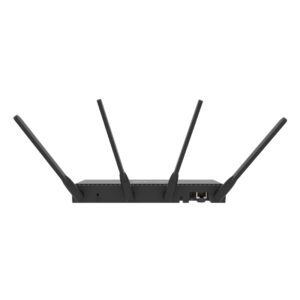

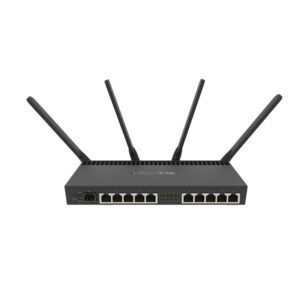

RB4011iGS+5HacQ2HnD-IN
Product code : RB4011iGS+5HacQ2HnD-IN
CPU : 4 core AL21400 1.4 GHz
Size of RAM : 1 GB
Storage : NAND 512 MB
10/100/1000 Ethernet ports : 10
SFP+ port : 1
Switch chip model : RTL8367SB
Wireless : 2.4 GHz radio , 5 GHz radio
Wireless regulations : Specific frequency range may be limited by country regulations
Operating frequency : 2412 - 2484 MHz , 5150 - 5875 MHz
Wireless interface model : R11e-2HnD , QCA-9984
Supported protocol : 802.11b/g/n , 802.11a/n/ac
Chains : 2 , 4
Antenna beam width : 360°
Antenna gain : 3 dBi (2 antennas dual band, 2 antennas single 5 GHz band)
Power Jack : 1
PoE in : Yes (port 1), passive, 18 - 57 V
PoE out : Yes (port 10), passive, up to 57 V
Max power consumption : 23 W without PoE out, 44 W with PoE out
Supported input voltage : 12 V - 57 V (jack)
Voltage Monitor : Yes
PCB temperature monitor : Yes
Operating temperature : -40 C .. +45 C
Dimensions : 228 x 120 x 30 mm
Serial port : RJ45
License level : 5

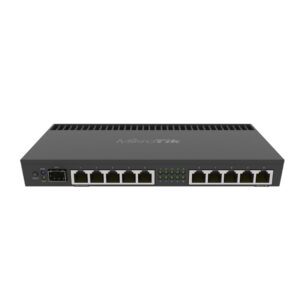

RB4011iGS+RM
Product code : RB4011iGS+RM
CPU : 4 core AL21400 1.4 GHz
Size of RAM : 1 GB
Storage: NAND 512 MB
10/100/1000 Ethernet ports : 10
SFP+ port : 1
Switch chip model : RTL8367SB
Power Jack : 1
PoE in : Yes (port 1), passive, 18 - 57 V
PoE out : Yes (port 10), passive, up to 57 V
Max power consumption : 18 W without PoE out, 33 W with PoE out
Supported input voltage : 12 V - 57 V (jack)
Voltage Monitor : Yes
PCB temperature monitor : Yes
Operating temperature : -40 C .. +70 C
Dimensions : 228 x 120 x 30 mm
Serial port : RJ45
License level : 5
Operating System : RouterOS

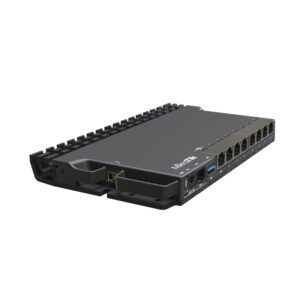

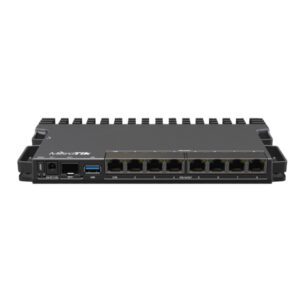

RB5009UG+S+IN
Product code : RB5009UG+S+IN
CPU : 88F7040 1.4 GHz
CPU architecture : ARM 64bit
CPU core count : 4
Size of RAM : 1 GB
RAM type : DDR4
Storage : 1 GB, NAND
Number of 1G Ethernet ports : 7
Number of 2.5G Ethernet ports : 1
Number of 10G SFP+ ports : 1
USB port : 1 (3.0 type A)
Operating system : RouterOS v7 only
Switch chip model : 88E6393
Dimensions : 220 x 125 x 22 mm
Operating temperature : -40°C to +60°C

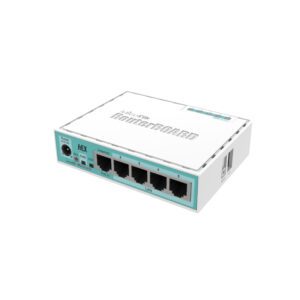

RB750Gr3 hEX
Product code : RB750Gr3
CPU nominal frequency : 880 MHz
CPU core count : 2
10/100/1000 Ethernet ports : 5
PoE in : Yes
Supported input voltage : 8 - 30 V
PCB temperature monitor : Yes
Voltage Monitor : Yes
USB : Yes, type A 2.0
Hardware encryption : Yes
Dude server package support : Yes
Dimensions : 113x89x28mm
License level : 4
Operating System : RouterOS
CPU : MT7621A
Max Power consumption : 5 W

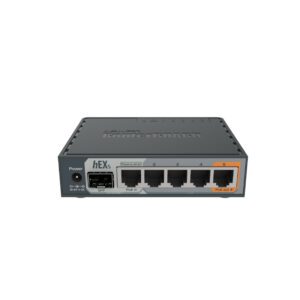

RB760iGS hEX S
Product code : RB760Igs
CPU : MT7621A
CPU nominal frequency : 880 MHz
CPU core count : 2
CPU threads : 4
Size of RAM : 256 MB
10/100/1000 Ethernet ports : 5
SFP cages : 1
PoE in : Passive, 802.3af/at
PoE out : Passive PoE up to 57 V (Ether5)
Supported input voltage : DC and PoE in: 12 - 57 V
Power output : Max out per port output (input < 30 V): 500 mA
Max out per port output (input > 30 V): 500 mA
Max total out: 500 mA
PCB temperature monitor : Yes
Voltage monitor : Yes
USB slot : USB type A
MicroSD slot : 1
Operating temperature: -40°C to +70°C
Dimensions : 113 x 89 x 28 m
License level : 4
Operating system : RouterOS
Max power consumption : 24 W
Max power consumption without attachments : 6 W

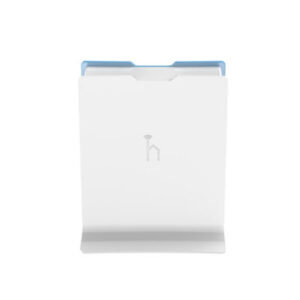

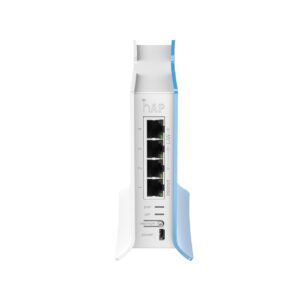

RB941-2nD-TC hAP lite TC
Order code : RB941-2nD-TC
CPU : QCA9533 650MHz CPU
Memory : 32MB DDR RAM
Ethernet : 4x 10/100 Mbit/s Ethernet with Auto-MDI/X
Wireless cards : Onboard dual chain 2.4GHz 802.11b/g/n QCA9533 wireless module; 10kV ESD Protection on each RF port, WPS support via button
Extras : Reset switch
LEDs : Power LED, 4x Ethernet LED, user LED
Power input : Packaged with 5V DC 0.7A power adapter
Dimensions : 124x100x54mm
Max consumption : 3W at 5V
Operating Temp : -20C .. +70C tested
OS : MikroTik RouterOS, Level 4 license (AP support)
Antenna : 1.5dBi gain

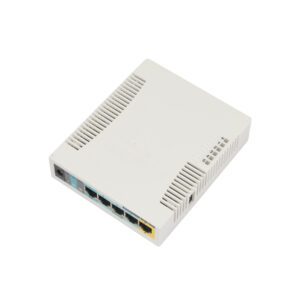

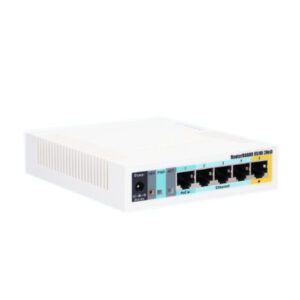

RB951Ui-2HnD
Features : RB951Ui-2HnD (USB, power injector, USB, 2GHz, 802.11n, dual chain)
CPU : Atheros AR9344 600MHz CPU
Memory : 128MB DDR2 onboard memory Ethernet : Five independent 10/100 Ethernet ports
LEDs : Power, NAND activity, 5 Ethernet LEDs, wireless activity LED
Power in : PoE: 8-30V DC on Ether1 (Non 802.3af). Jack: 8-30V DC
Power out : PoE passive on port 5, same voltage as input.
Dimensions : 113x138x29mm
Weight : Without packaging and PSU: 232g, full weight in package: 420g
Power consumption : Up to 7W
Operating Temp : -20C .. +60C
Operating System : MikroTik RouterOS, Level4 license
Package contains : RouterBOARD in a plastic case, 24V 0.8A power adapter
Antennas : 2x2 MIMO PIF antennas, max gain 2.5dBi
